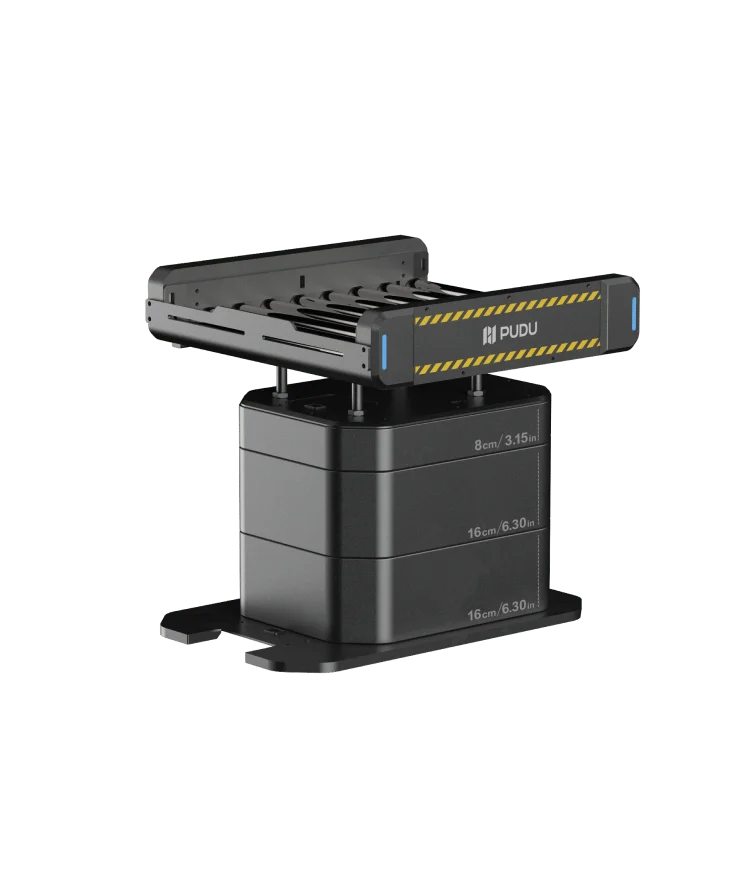

Conveyor-Single Layer

Accessory highlights

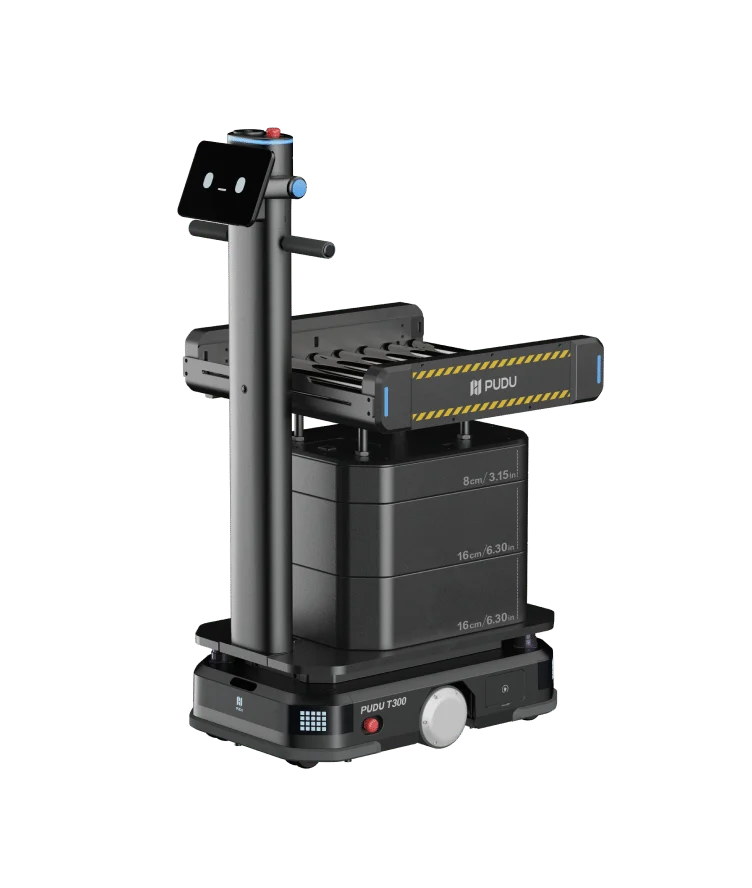

The T300 Conveyor is equipped with a self-powered roller system, enabling seamless integration with automated conveyor lines and other material handling equipment, it facilitates efficient material transfer and transportation between different stations.

Highly Adaptable Design
Adjustable in length, width, and height to fit diverse transfer needs. Supports transfer lengths up to 650 mm and widths adjustable from 120 mm to 540 mm. Working height adjustable from 305 mm to 1100 mm. Roller docking orientation is also configurable.

Precise and Efficient Transport
±10 mm docking accuracy ensures reliable and consistent alignment. Single-layer payload capacity up to 80 kg, expandable to a dual-layer setup for double the throughput and simultaneous multi-material handling.

Flexible & Multi-Functional Applications:
Supports “Human-to-Line”, “Line-to-Line” and “Line-to-Human” material transfer solutions. Compatible with manual/automated loading and unloading.

Basic specifications

Docking Accuracy: ±0.4 in (±10 mm), ±1°

Run-time(No load): 12 h

Run-time(Full Load): 10 h

Charging Time: 2 h (0-90%)

Number of Layer: 1

Rated Load per Layer: 176 lbs/layer, 80 kg/layer
