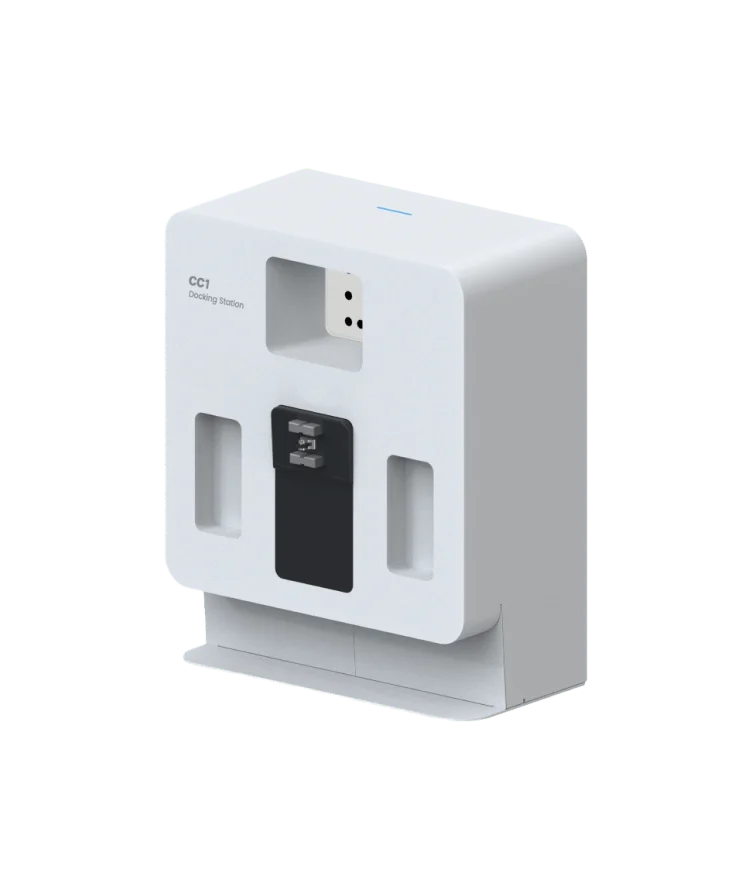

Charging Station

Accessory highlights

Auto power charging:
Allows the robot to automatically return to the Charging Station for autonomous charging, without the need for human intervention.

Multi-scheme charging:
Enables the implementation of multiple charging scenarios based on the robot’s working conditions, including charging during peak working hours, charging during inactive periods, and suspension of tasks for recharging.

Power monitoring:
The real-time monitoring of the robot’s power level ensures that it is recharged in a timely manner to prevent work interruptions caused by insufficient power.

Charging management:
Records the charging status of the robot, including the charging time, amount of power, and other related information, thereby providing the users with convenient management and statistical analysis options.

Basic specifications

Operating voltage: 100Vac~240Vac 50/60Hz

Power output: 29.4 Vdc / 8 A

Self-weight: 5.5 kg

Dimensions: 390 mm x 390 mm x 165 mm

Noise: Not more than 55 dB (A)

Protection level: IP20

Operating temperature: 0° C ~ 40° C

Storage environment: -20° C ~ 60° C
